Industry Solution



Bank



 Description

For banks, we specially offer a solution to serve the needs for strict surveillance. Equipped with functions such as WDR and Solid Light, it can go with recorders to do Failover, Seamless Recording, and Auto Backup to FTP / External HDD, making the surveillance sound and rounded.

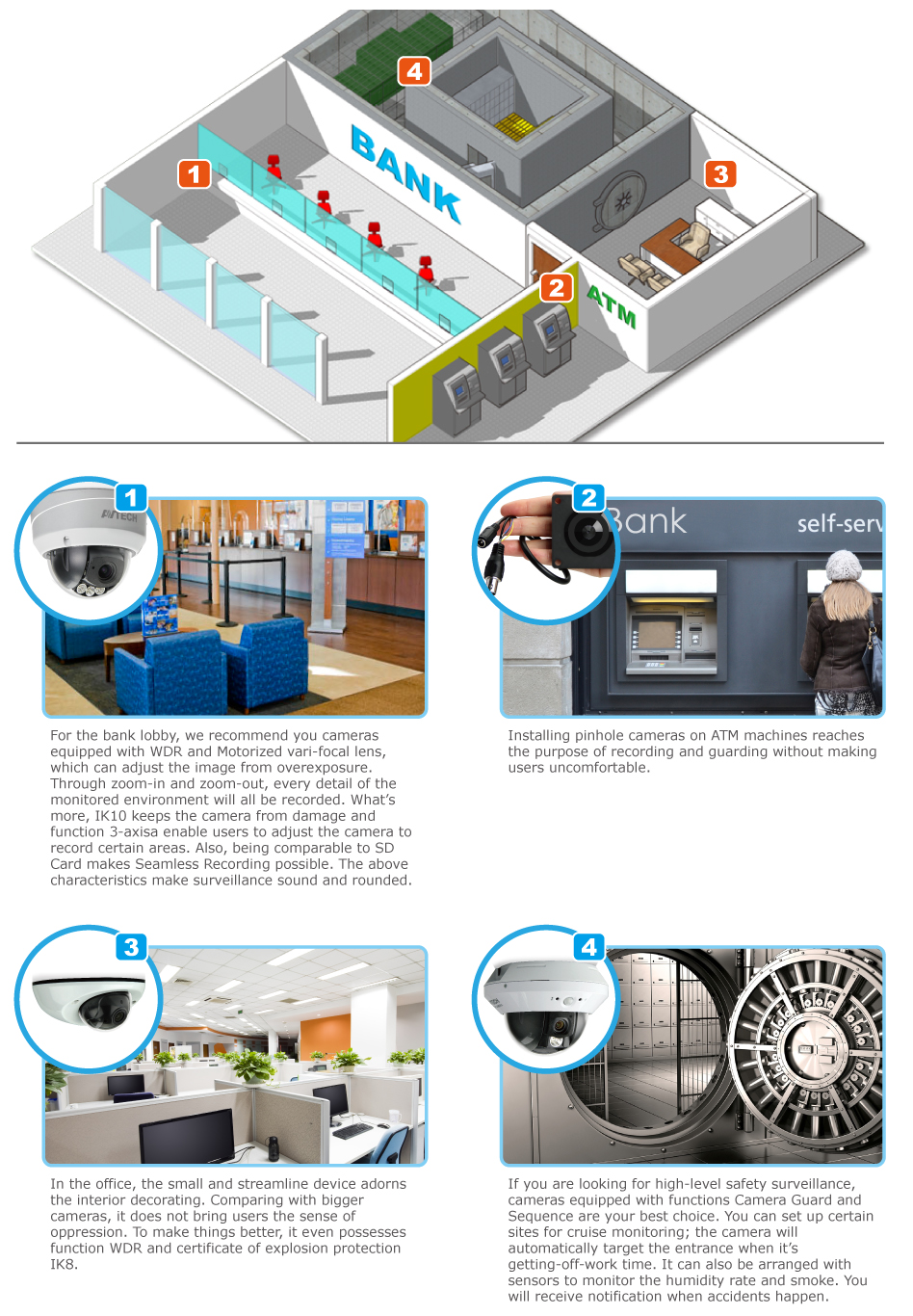

System diagram






Solid Light
- Advanced Smart Light Control -
When an object is close to the camera during night time, Solid Light will sense it and automatically control the amount of light to avoid over-exposure.

Longer IR Effective Distancel
Solid Light is able to produce stronger lighting under IR Enhance mode than traditional IR LEDs. It enhances the overall picture brightness and reaches longer distance in a dark environment.

- Longer LED Lifetime -
Solid Light applies special circuit design to avoid overheat and uses a heat sink to dissipate heat from LED more quickly. LED lifetime can last for 3 years with Solid Light design.


WDR
Increase image recognizability in overexposure and dark areas.

For details, please go to:
http://211.75.84.102/e_news/WDR_IPCAM/WDR_ipcam_series.html



Redundant system
The complete redundant and failover mechanism ensures continuous recording without interruption.

For details, please go to:
http://www.youtube.com/watch?v=4iBTVqjAm3E&list=UUKVSz5L63XWK9XyGtIx2q2A

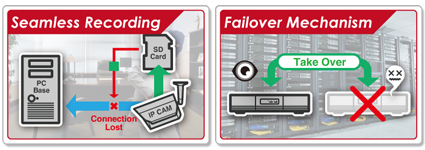

Seamless Recording
When the NVR and IP cameras are disconnected, the recording task will switch to the cameras, and the recordings are saved to the microSD cards of the cameras. When the NVR and IP cameras are re-connected, the recordings saved in the microSD cards will transfer to the NVR and save in the hard disks without changing the original recordng time. Users could still search the recordings they want by time on the NVR.

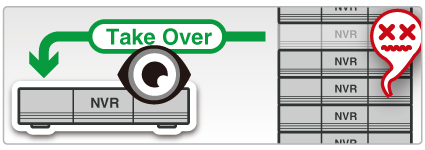

Failover System
A proportion of FOS NVRs will be assigned as failover servers to the whole surveillance system. Usually 1 FOS NVR shall be worked with 7 NVRs. When any of the NVRs is down, the FOS NVR will soon take over all the works the NVR was doing to keep the whole system working properly. Users could be notified of this take-over event by checking the health check on CMS, and take necessary actions.

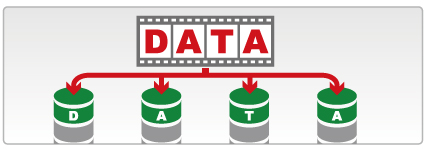

HDD Redundancy (RAID5)
RAID5 is supported to be able to well-perserve video data when any hard disk is damaged or partially damaged. To change the hard disk, hot-swap is applicble without powering off the whole system.



Related Products

Cameras
Model No.
Product image
Resolution
Lens
IR Effective Distance
Weather-/Vandal-proof
Download
AVM311
1280x1024
1280x720
640x480
320x240
f3.8mm / F1.5; f2.8mm / F1.8 (Optional) IK08
v
AVM503
1920x1080
1280x720
720x480
352x240
f3.8mm / F1.5 up to 15 meters
v
AVM542A
1920x1080
1280x720
720x480
352x240
f2.8 ~ 12mm / F1.4 ~ F2.8 Default: up to 30 meters
IR Enhanced Mode: up to 50 meters
IP66 / IK10
v
AVT1301
1080Pf4.3mm / F2.0
v
AVT503SA
1080Pf3.6mm / F1.8 Up to 15 meters
v

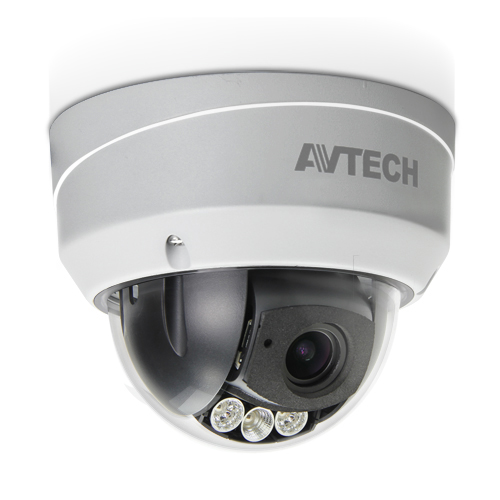

AVT543
1080PMotorized f2.8 ~ 12mm / F1.4 ~ F2.8 Up to 50 meters IP66 / IK10
