8-bay Pentabrid 32CH XVR
    • Smart IOT Scenario
    • Long-Time Recording
    • Event Management
    • EaZy Installation & Maintenance
    • Easy Remote Surveillance

Features

Features

WDR2
In 2016, we present you a new interface along with more user-friendly functions to bring you more enjoyable using experience.
WDR3
In 2016, we present you a new interface along with more user-friendly functions to bring you more enjoyable using experience.
WDR4
In 2016, we present you a new interface along with more user-friendly functions to bring you more enjoyable using experience.
WDR5
1231231 123123123
WDR6
SSS
TEST-01@@@

The contrast between light and shade is obvious, resulting low facial recognition efficiency. With WDR, this camera is able to increase face recognization and de@@@@crease overexposure without sacrificing video fluency. You will never obtain dark and blurred images.@@@###

Video@@@@@@@@@@@@@@@2 De#####mo


WDR-0201

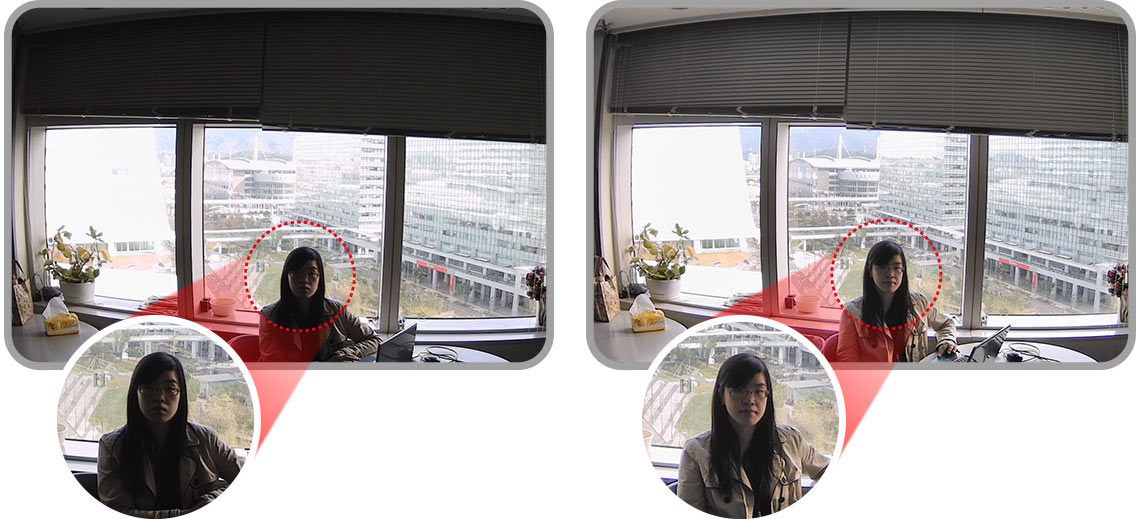

The contrast between light and shade is obvious, resulting low facial recognition efficiency. With WDR, this camera is able to increase face recognization and decrease overexposure without sacrificing video fluency. You will never obtain dark and blurred images.

Video Demo


WDR1

The contrast between light and shade is obvious, resulting low facial recognition efficiency. With WDR, this camera is able to increase face recognization and decrease overexposure without sacrificing video fluency. You will never obtain dark and blurred images.

Video Demo



Specifications

Specifications

Video
Video System NTSC / PAL (auto detection)
Video Compression Format H.264
Video Signal 32 channels (TVI / CVI / Analog HD / 960H)
within which IP channels are up to 2 channels.
Video Input 32 channels (Composite video signal 1 Vp-p 75Ω BNC)
Video Input Interface Analog Mode Composite video signal 1 Vp-p 75Ω BNC
Video Output IP Mode Ethernet, 10/100 Base-T
BNC YES (Spot Monitor supported)
VGA YES (1080P display / Spot Monitor supported)
Video Resolution HDMI HDMI-1 (4K2K display) / HDMI-2 (1080P display / Spot Monitor supported)
Analog Mode 1080P / 720P / QHD / 960H / Frame / Field / CIF
IP Mode 1920 x 1080 / 1280 x 720 / 640 x 480 / 320 x 240
Record & Backup
Max. Recording Rate Analog Mode Up to 384 IPS @ 1920 x 1080
IP Mode Up to 30 IPS @ 1920 x 1080 (2 channels)
Recording Mode Manual / Timer / Motion / Alarm / Remote
Pre-alarm Recording YES
Playback Channel 16CH
Quick Search Time / Motion / Alarm search mode
Backup Device USB 3.0 drive / Network
Regular Backup YES (USB hard drive or FTP)
Audio
Audio Input 16
Audio Output (Mono) 2
External I/O
RS485 YES
Alarm Input 8
Alarm Output 1
Alarm Scenario YES
General
Hard Disk Storage 10TB SATA HDD x 8
SATA Interface YES
Image Quality Setting SUPER BEST / BEST / HIGH / NORMAL
USB Mouse Control YES
Motion Detection Area 16 × 12 grids per channel
Motion Detection Sensitivity 3 adjustable parameters for accurate detection
Event Notification Push Status / FTP / E-Mail
Picture Zoom 2X digital zoom
PTZ Control YES
Key Lock (Password Protection) YES
User Level 4 user levels for different access privilege
Video Loss Detection YES
Camera Title Supports up to 25 letters
Video Adjustable Hue / Saturation / Contrast / Brightness
Date Display Format YY/MM/DD, DD/MM/YY & MM/DD/YY
Daylight Saving YES
Power Source (±10%) 19V/4.7A
Operating Temperature 10ºC ~ 40ºC (50ºF ~104ºF)
Operating Humidity 10% ~ 85%
Dimensions (mm)** 358mm(L) x 267mm(W) x 152mm(H)
Net Weight (kg) 5.9 kg
Network
Ethernet 1000 Base-T. Supports remote control and live view via Ethernet
Network Protocol TCP/IP, PPPOE, DHCP and DDNS
Remote Surveillance from PC
Compatible Operating System Windows & MAC
Compatible Program Web Browser:
  • Windows Edge, Internet Explorer
    (Windows 8 and later version)
  • Safari, Google Chrome & Mozilla Firefox
    (Windows Vista and later version)
CMS Lite: 32CH central management software for Windows OS
Max. online users 36
Web Transmitting Compression Format H.264
Remote Live Display 9CH (Selectable)
Network Live Audio YES
Remote Event Download & Playback YES
Mobile Surveillance
App EagleEyes
Compatible Devices iOS & Android devices
Push Status YES
Others
EaZy Networking YES
Alarm Scenario Setup YES
Spot Monitor Setup Call Monitor / Event Monitor / Live Monitor (HDMI-2, VGA & Composite Selectable)
DCCS Support YES
AVTECH Free DDNS service YES
Privacy Mask YES
Multiplex Operation Live display / record / playback / backup / network operations
System Recovery System auto recovery after power failure
Optional Peripherals HDMI Matrix (HDM02) / USB Joystick (AVX102)
