Features

Full Redundancy_Tracy
Users could build a solid surveillance system with AVTECH redundant solutions consisting of a switch, networking cable, HDD, recorder, power adaptor and fan.

For details, please go to:here

http://211.75.84.102/e_news/2015_Catalogue_eNews/Solution_Software_FullRedundancy.html

User-friendly Camera Configuration via DVR OSD

AVTECH HD CCTV cameras have their own setting menu for more advanced configurations, and the setting menu could be accessed easily via the AVTECH recorders' OSD.

Specifications

Hardware

Video Input

8 LAN ports with PoE

Video Output

HDMI

YES (4K2K)

VGA

YES (1080P / Spot Monitor Supported)

Composite

YES (Spot Monitor Supported)

Video Output Resolution

3840 x 2160

Audio

1 in (mic in) / 1 out

Alarm I/O

4 in / 1 out

RS485

YES

HDD Storage**

Either one 10TB SATA HDD installed in the recorder, or
a disk array connected to the recorder via the eSATA interface

USB Port

YES

eSATA Port

Expandable with a SATA to eSATA cable

IR Remote Control

YES

Ethernet

POE 1 ~ 8 (LAN) ports

10/100 Mbps with PoE

Internet (WAN) port

1000 Mbps

Software

Video Compression Format

H.265

Audio Compression Format

G711

Local / Remote Display Mode

9CH

Local / Remote Playback Mode

9CH

Local Single Channel Playback

YES

Recording Mode

Manual / Event / Alarm / Schedule

Record Streaming

Dual

Recording Throughput

270 IPS @ 3264 x 2448, up to 160Mbps

Pre-alarm Recording

YES

Quick Search

Time / Event

Event Notification

Push Video / Push Status / Video Mail / Message Mail

Security

Multiple user access levels with password

Remote Access

(1) Windows Edge, Internet Explorer, Chrome & Safari on Windows OS

(2) CMS Lite, 32CH CMS software for Windows OS

(3) EagleEyes on iOS & Android mobile devices

Max. Online User

10

Multicast

YES

Seamless Recording***

YES

EaZy Networking

YES

IVS***

YES (9CH)

Spot Monitor Setup

YES (VGA & Composite)

Alarm Scenario Setup

YES

Alarm Pop-up & Preview

YES

Free DDNS Service

YES

Success Story

Related Solutions

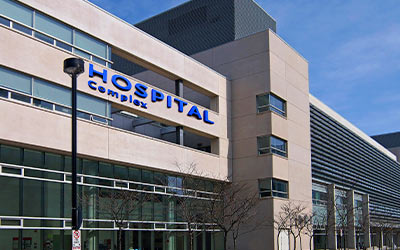

Hospitals & Health Institutions

For some areas which require to monitor every staff's entry and gain his / her basic health assessment, the AVTECH solution for hospital & health institutions is integrated with the latest access control system to detect each entry. For high radiation areas such as Nuclear Medicine Division, we can keep the staff away from these areas while keeping close watch on the patients.

more...

Banks

The AVTECH solution for banks is integrated with face recognition to help identify suspicious target and alert the security guard. For video data storage, backup and protection, this solution also includes long time recording and the RAID mechanism in case of a drive failure. $$$$$$$$$$$$$$$44
$$$$$$$$$$444

more...

>
