Features

WDR3
In 2016, we present you a new interface along with more user-friendly functions to bring you more enjoyable using experience.

WDR4
In 2016, we present you a new interface along with more user-friendly functions to bring you more enjoyable using experience.

WDR5
1231231 123123123

WDR6
SSS

WDR2
In 2016, we present you a new interface along with more user-friendly functions to bring you more enjoyable using experience.

WDR-10@##

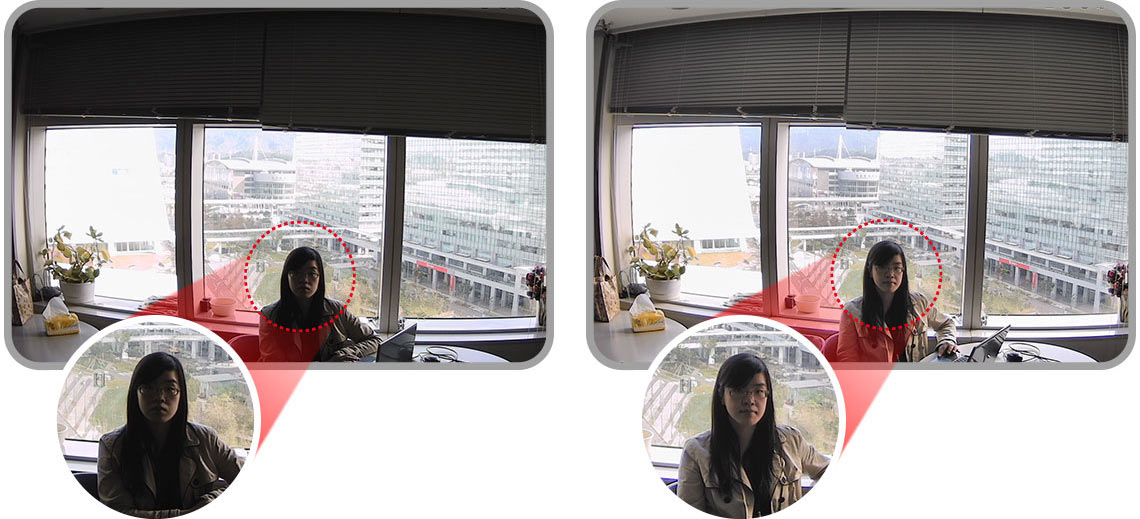

The contrast between light and shade is obvious, resulting low facial recognition efficiency. With WDR, this camera is able to increase face recognization and decrease overexposure without sacrificing video fluency. You will never obtain dark and blurred images.@##

Vide@@@@####@@@o Demo

WDR1

The contrast between light and shade is obvious, resulting low facial recognition efficiency. With WDR, this camera is able to increase face recognization and decrease overexposure without sacrificing video fluency. You will never obtain dark and blurred images.

Video Demo

WDR-0201

The contrast between light and shade is obvious, resulting low facial recognition efficiency. With WDR, this camera is able to increase face recognization and decrease overexposure without sacrificing video fluency. You will never obtain dark and blurred images.

Video Demo

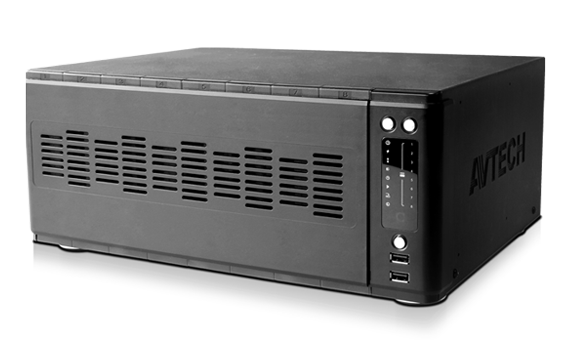

Specifications

Hardware
Video Input		One LAN port (up to 36 IP cameras) @@
Video Output		HDMI x 2 / VGA x 1 / Composite x 1 ##
Video Output Resolution		HDMI-1: Up to 3840 x 2160 (4K2K) HDMI-2 & VGA: Up to 1920 x 1080 (Full HD) $$$
Audio Output		YES (Line out / HDMI)
Audio Input		YES (Mic in)
Alarm I/O		Alarm out only
HDD Storage**		Eight 10TB hard disks
USB Ports		USB 3.0 x 1 / USB 2.0 x 2
Ethernet	LAN port	1000Mbps
	Internet port	1000Mbps
Software
Video Compression Format		H.265
Audio Compression Format		G711
Local / Remote Display Mode		36CH
Local / Remote Playback Mode		36CH
Local Single Channel Playback		YES
Record Stream		Dual
Recording Mode		Manual / Event / Alarm / Schedule
Recording Throughput		Up to 480 IPS @ 8MP, 300Mbps Up to 1080 IPS @ 5MP, 300Mbps
Pre-alarm Recording		YES
Quick Search		Time / Event
Event Notification		Push Video / Push Status / Video Mail / Message Mail
Security		Multiple user access levels with password
Remote Access		Browsers such as Windows Edge, Internet Explorer, Google Chrome & Safari on Windows operating system CMS Lite, 32CH CMS software for Windows operating system EagleEyes on iOS & Android mobile devices
Max. Online User		20
Multicast		YES
Seamless Recording		YES
EaZy Networking		YES
Spot Monitor Setup		Call Monitor / Event Monitor / Live Monitor (HDMI-2, VGA & Composite)
General
Alarm Scenario Setup		YES
Alarm Pop-up & Preview		YES
Power Source (±10%)		DC19V / 3.42A
Power Consumption (±10%)		14.25W (No hard disks connected)
Operating Temperature		10℃ ~ 40℃ (50℉~104℉)
Operating Humidity		10% ~ 85%
Dimensions (mm)***		358mm(L) x 267mm(W) x 152mm(H)
Net Weight (kg)		5.8 kg
Minimum PC Browsing Requirements		Intel core i3 or higher, or equivalent AMD 2GB RAM AGP graphics card, Direct Draw, 32MB RAM Windows 10, Windows 8, Windows 7, Windows Vista & Windows XP, DirectX 9.0 or later Internet Explorer 7.x or later (Windows Edge not supported)
Optional Peripherals		Full HD Matrix (HDM02) / PTZ Joystick (AVX102)
The specifications are subject to change without notice * HDDs are optional. *** Dimensional tolerance: .±5mm
