Industry Solution



Education / Campus Safety Guard System



 Description

AVTECH provides solutions to meet the relatively high requirement of campus security day and night, keeping the staff, students from intruders.

AVTECH learned about the safety concerns from the students’ families, and the solutions are listed as below.

1.Video Surveillance : AVTECH Cameras provide HD image of the surrounding of the campus 24/7. And the security staff is able to monitor the campus through CMS and Mobile APP .

2.Attendance Management : To track and report attendance condition of the staff and the students. Users can also set a access authority requirment on RFID tag to unlock doors for rooms that can only be entered by the staff.

3.Campus intruder detection and notification: Report events when intruders try to break in the campus fences. Reports will be shown on computer CMS and Mobile APP immediately.

4.Central management and mobile surveillance: All cameras will be monitored in control room on computer CMS. Every events will be sent through Pop out screen with E-map and Voice indicating the event’s location. Instant notification will be sent to certain mobile devices through APP to fulfill multiple safety purposes. In the system, we especially focus on the safety issue and strengthen the protection measures. Its high flexibility in application and installation makes it the perfect choice for schools with different environments.

Project Inquiry

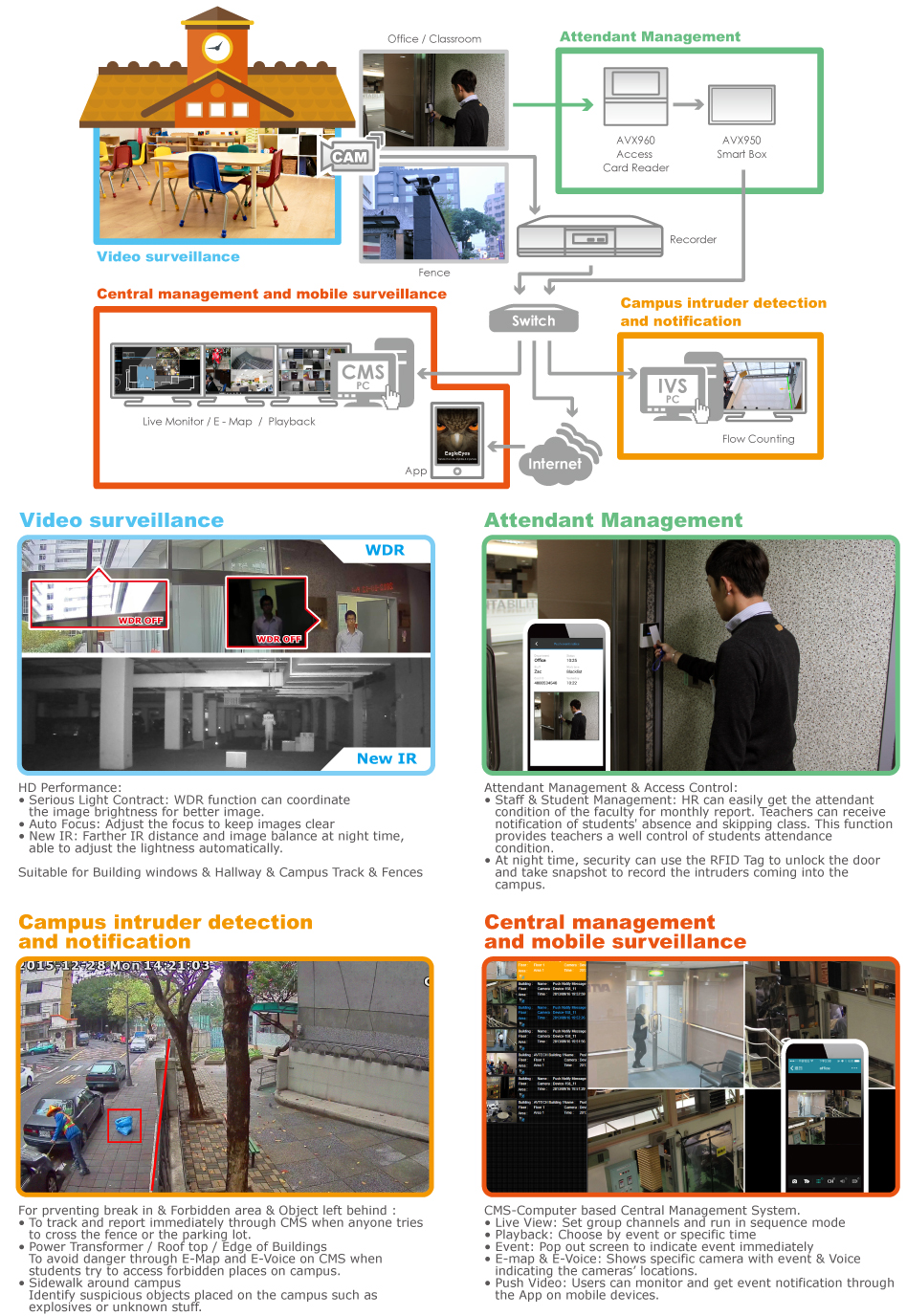

System diagram






Solid Light
- Advanced Smart Light Control -
When an object is close to the camera during night time, Solid Light will sense it and automatically control the amount of light to avoid over-exposure.

Longer IR Effective Distancel
Solid Light is able to produce stronger lighting under IR Enhance mode than traditional IR LEDs. It enhances the overall picture brightness and reaches longer distance in a dark environment.

- Longer LED Lifetime -
Solid Light applies special circuit design to avoid overheat and uses a heat sink to dissipate heat from LED more quickly. LED lifetime can last for 3 years with Solid Light design.

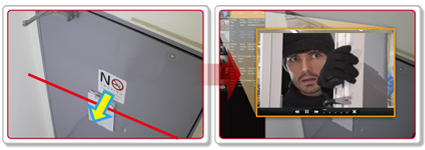

Virtual fence
Set a virtual line as a fence in the confidential or restricted area to detect for unauthorized visits and get event pop-up in CMS for notifications.







WDR
Increase image recognizability in overexposure and dark areas.

For details, please go to:
http://211.75.84.102/e_news/WDR_IPCAM/WDR_ipcam_series.html



CMS Lite

CMS-Lite, the 24CH free software, is exclusively designed for monitoring multiple spots remotely. Common applications are chain stores and branch offices. Users can easily use functions such as live view, playback and backup with this software installed on a normal laptop. For advanced central control application, AVTECH provides you with 64CH CMS-Standard and 96CH CMS-Professional. What’s more, there are 16CH EagleEyesHD and 4CH EagleEyes for remote surveillance through tablets and mobile phones.

For details, please go to: http://211.75.84.102/e_news/2015_Catalogue_eNews
/Solution_Software_CMS.html


Related Products

Cameras
Model No.
Product image
Resolution
Lens
IR Effective Distance
Weather-/Vandal-proof
Download

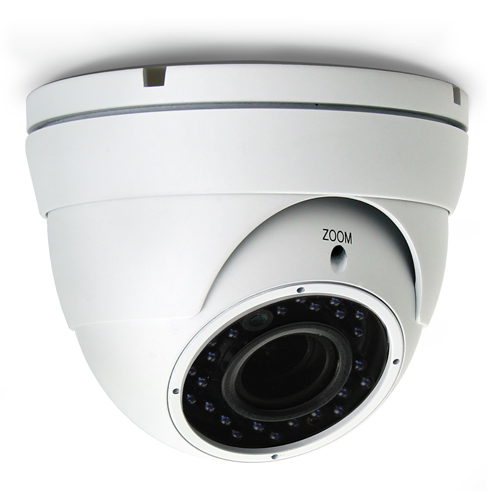

AVM3432T
2048x1536
1920 x 1080
1280 x 720
640 x 480
320 x 240
f2.8 ~ 12mm / F1.4 ~ F2.8 Uup to 20 meters IP66
v

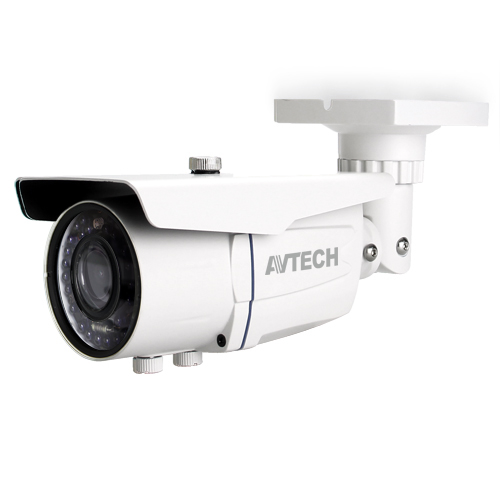

AVM3452T
2048x1536
1920 x 1080
1280 x 720
640 x 480
320 x 240
f2.8 ~ 12mm / F1.4 ~ F2.8 Up to 30 meters IP66
v

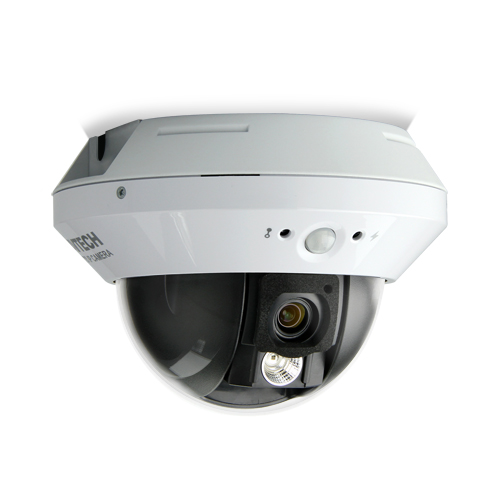

AVM521A
1920x1080
1280x720
720x480
352x240
f3.8mm / F1.5 Default: up to 15 meters
v

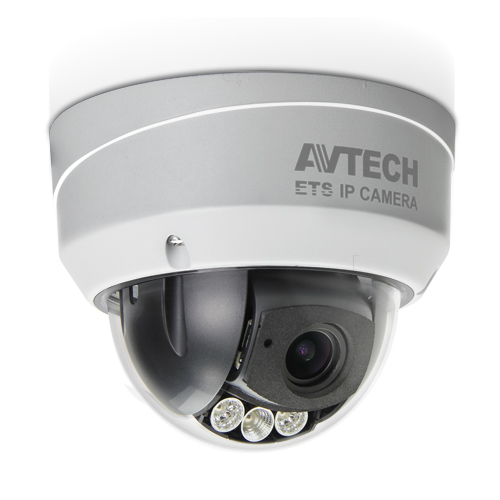

AVM542B
1920x1080
1280x720
720x480
352x240
f2.8 ~ 12mm / F1.4 ~ F2.8 Default: up to 30 meters
IR Enhanced Mode: up to 50 meters
IP66 / IK10
v

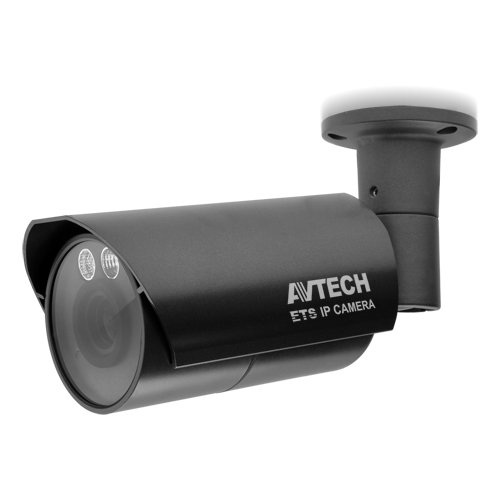

AVM552C
1920x1080
1280x720
720x480
352x240
f2.8 ~ 12mm / F1.4 ~ F2.8 Default : up to 25 meters
IR Enhanced Mode : up to 35 meters
IP66
v

Recorders
Model No.
Product

Recording
Throughput

HD
Storage

Channel
eSata
Recording Format
Video Output
Download

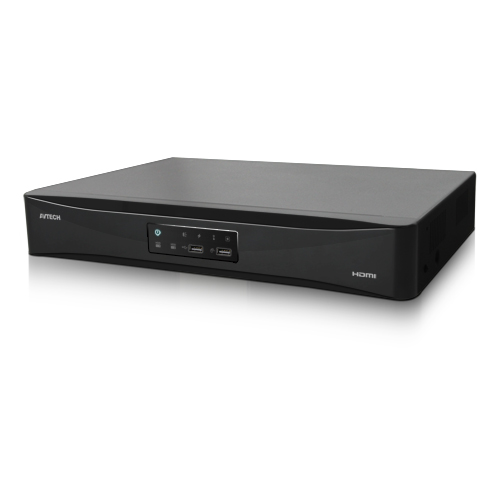

AVH317
120 IPS @ 1920x1080, up to 48Mbps </br> 80 IPS @ </br>2048 x 1536, up to </br> 48 Mbps</br> Two 4TB hard disks16CH

v
AVH364
Up to 1080 IPS @ 1280 x 720, Up to 192Mbps Up to 480 IPS @ 1920 x 1080, Up to 192Mbps 10 HDDs64CH

v

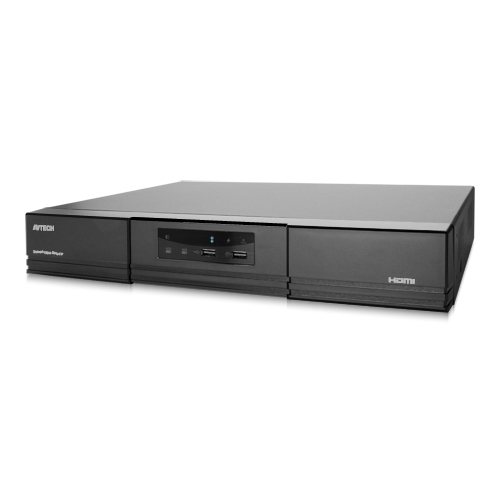

AVH408P
Up to 120 IPS @ </br>2048 x 1536, 48 Mbps</br>Up to 120 IPS @ 1920x1080, 48Mbps 2 HDDs8CH

v

Peripherals
Model No.
Product image
Product name
Product specification
Download

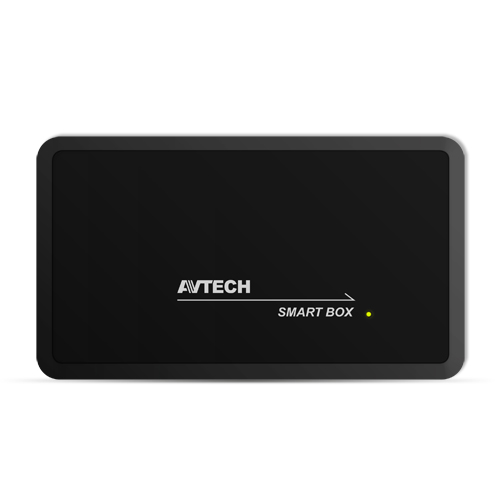

AVX950
Smart BoxAVX950, the smart box, is the setup platform and portal to link to AVTECH IoT (Internet-of-Thing) accessories. To monitor each accessory individually linked by AVX950, a series of mobile app named EagleLinkIT is designed. Simply enter the IP information of this smart box on the EagleLinkIT app of the accessory you want to see, and you’ll be able to access the accessory for instant management and control.
v

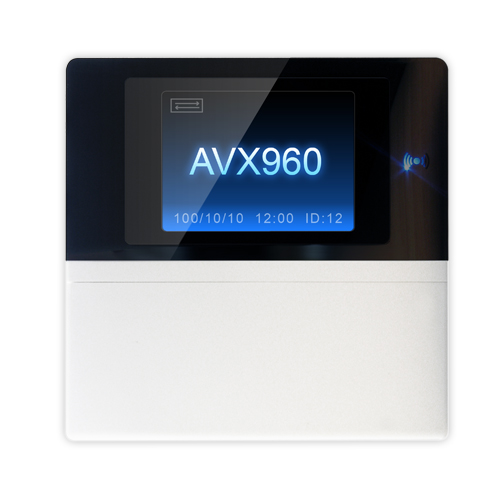

AVX960
Access Card ReaderThis card reader is one of the IoT (Internet-of-Thing) accessories AVTECH designs. It should work with AVX950, the Smart Box, for access control. You can use it to record attendance of each staff with different statuses, and generate reports for evaluation. You can also connect different sensors or alarm devices such as a push button or magnetic lock to record or perform more actions.
v
