Industry Solution



Chain Store Surveillance



 Description

AVTECH has packaged solutions for Chain stores, including

1.Video surveillance: High quality image for monitoring cashier, entrance ,and other important areas.

2.Staff Management: A Simple attendance system combines access control devices which allow you to check staff attendance and get abnormal event notification on smart phone.

3.Multiple stores management: The headquarters can manage all CCTV devices in branches through CMS. The mobile App allows managers to supervise all stores anytime anywhere.

4.Marketing data analysis: IVS analysis helps you evaluate the effects of marketing activities and optimize store performance.

Project Inquiry

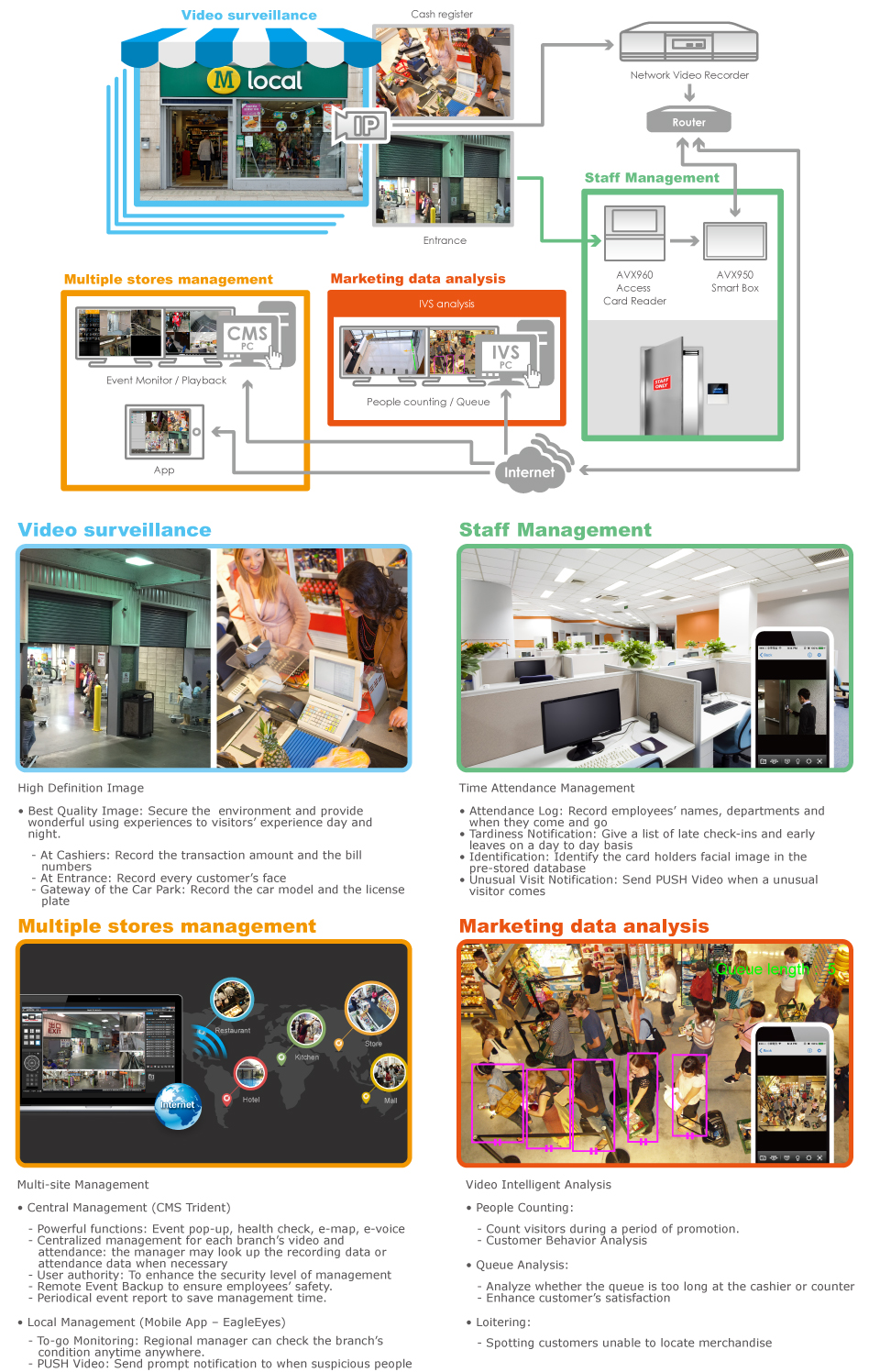

System diagram






IVA – Flow Counting
Shop owners are able to know customer visit count per day using Flow Counting built-in in the camera. Regular reports and analysis could later be generated by CMS for labor and promotion evaluation.







Access control
Integrated with the access control system, the employees’ data will be transferred to and logged in the CMS for access and attendance record.







CMS Lite

CMS-Lite, the 24CH free software, is exclusively designed for monitoring multiple spots remotely. Common applications are chain stores and branch offices. Users can easily use functions such as live view, playback and backup with this software installed on a normal laptop. For advanced central control application, AVTECH provides you with 64CH CMS-Standard and 96CH CMS-Professional. What’s more, there are 16CH EagleEyesHD and 4CH EagleEyes for remote surveillance through tablets and mobile phones.

For details, please go to: http://211.75.84.102/e_news/2015_Catalogue_eNews
/Solution_Software_CMS.html



Related Products

Cameras
Model No.
Product image
Resolution
Lens
IR Effective Distance
Weather-/Vandal-proof
Download
AVM3432T
2048x1536
1920 x 1080
1280 x 720
640 x 480
320 x 240
f2.8 ~ 12mm / F1.4 ~ F2.8 Uup to 20 meters IP66
v
AVM3452T
2048x1536
1920 x 1080
1280 x 720
640 x 480
320 x 240
f2.8 ~ 12mm / F1.4 ~ F2.8 Up to 30 meters IP66
v
AVM521A
1920x1080
1280x720
720x480
352x240
f3.8mm / F1.5 Default: up to 15 meters
v
AVM542A
1920x1080
1280x720
720x480
352x240
f2.8 ~ 12mm / F1.4 ~ F2.8 Default: up to 30 meters
IR Enhanced Mode: up to 50 meters
IP66 / IK10
v
AVM552C
1920x1080
1280x720
720x480
352x240
f2.8 ~ 12mm / F1.4 ~ F2.8 Default : up to 25 meters
IR Enhanced Mode : up to 35 meters
IP66
v

Recorders
Model No.
Product

Recording
Throughput

HD
Storage

Channel
eSata
Recording Format
Video Output
Download
AVH317
120 IPS @ 1920x1080, up to 48Mbps </br> 80 IPS @ </br>2048 x 1536, up to </br> 48 Mbps</br> Two 4TB hard disks16CH

v
AVH364
Up to 1080 IPS @ 1280 x 720, Up to 192Mbps Up to 480 IPS @ 1920 x 1080, Up to 192Mbps 10 HDDs64CH

v
AVH408P
Up to 120 IPS @ </br>2048 x 1536, 48 Mbps</br>Up to 120 IPS @ 1920x1080, 48Mbps 2 HDDs8CH

v

Peripherals
Model No.
Product image
Product name
Product specification
Download
AVX950
Smart BoxAVX950, the smart box, is the setup platform and portal to link to AVTECH IoT (Internet-of-Thing) accessories. To monitor each accessory individually linked by AVX950, a series of mobile app named EagleLinkIT is designed. Simply enter the IP information of this smart box on the EagleLinkIT app of the accessory you want to see, and you’ll be able to access the accessory for instant management and control.
v
AVX960
Access Card ReaderThis card reader is one of the IoT (Internet-of-Thing) accessories AVTECH designs. It should work with AVX950, the Smart Box, for access control. You can use it to record attendance of each staff with different statuses, and generate reports for evaluation. You can also connect different sensors or alarm devices such as a push button or magnetic lock to record or perform more actions.
v
