Success Story

Here are the success stories and cases with AVTECH total solutions.

Plaza Bali in Indonesia



 Description

Plaza Bali is located at Sockarno-Hatta International Airport. It has been in operation since 1991. PLAZABALI is a duty-free shop known for it’s unique experience while combining vigorous Bali culture and a comfortable, relaxing shopping experience inside the airport. A variety of duty-free goods and friendly multilingual services will provide tourists a brand new shopping experience before boarding the plane. This shop originally used traditional CCTV equipments, but this time, the shop owner had a new requirement for surveillance.

Besides improving image quality, there are two more objectives. The first one is to send Push Status through alarm-in trigger so that the management personnel can instantly understand the first-hand situation inside key areas of the shop and will contact personnel when a situation occurs. The second one is to use the Buddy function from EZ Networking to share device access to important personnel for shop management.

The client also required a system update without replacing the original CCTV coaxial cable; we planned an update installation with the HDCCTV 2MP products and divided the entire surveillance area into two parts, indoor and outdoor. Inside the shop, we used 20 DG103A with 1080P Full HD resolution. In the outdoor public area, 12 DG105A were placed to go with four 8CH HD CCTV DVRs inside the machine room and HDM02 was used to combine and show each DVR’s images. This provides the easiest, fastest and most cost-down way to integrate each system for central surveillance. AVX916R is additionally used to send surveillance images to the cashier via a coaxial cable. Clerks will be able to check the situation in every corner without leaving his or her post.

In this case, we used the most economical way to achieve the most effective monitoring and provide a referenceable solution for related cases in the future.

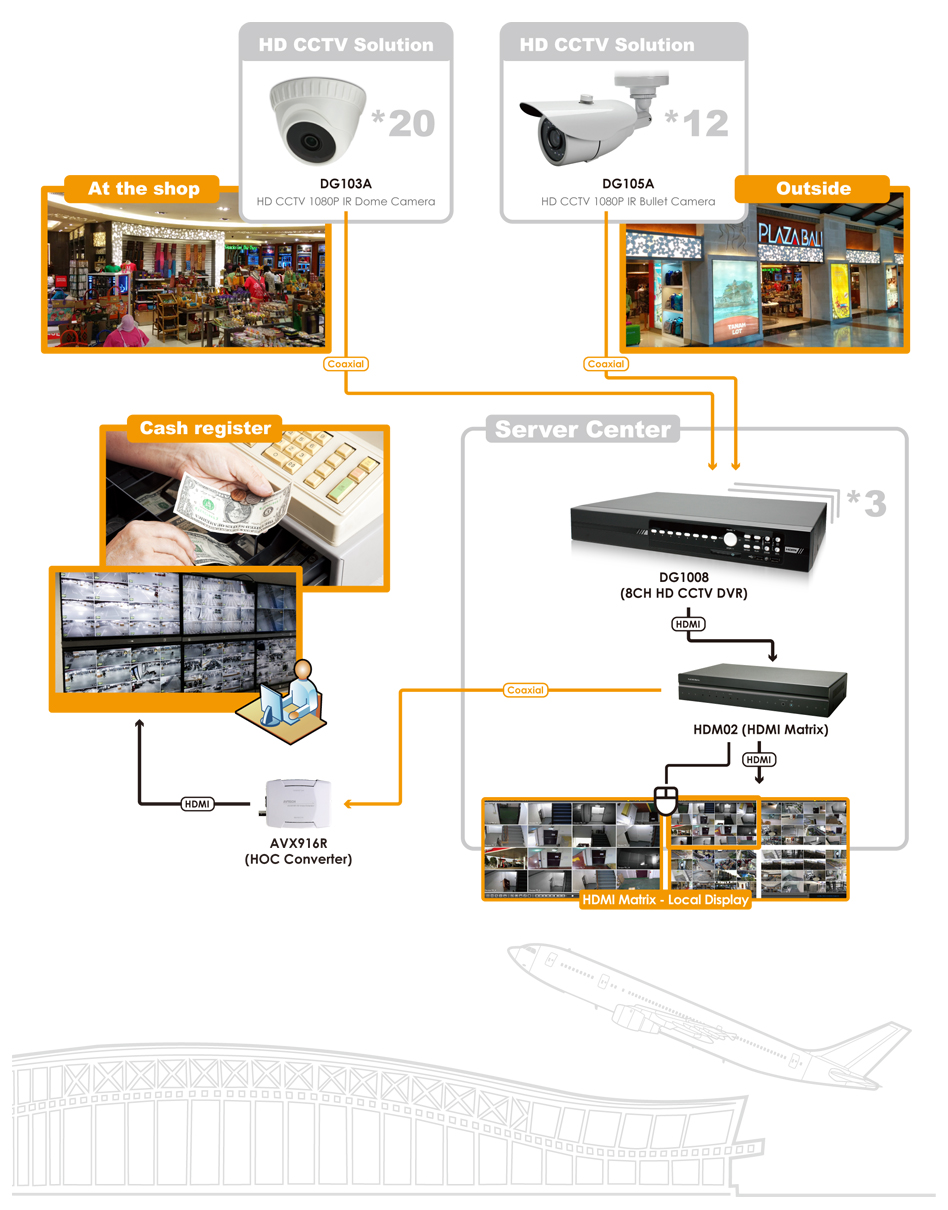

System diagram









Push Status
Users could immediately get notified of all abnormal system events for their surveillance systems (such as video loss, system being unlucked, no hard disk, etc.) from their smart phones by the function of Push Status.

For details, please go to:
http://211.75.84.102/e_news/pushstatus/pushstatus.html

Related Products

Cameras
Model No.
Product image
Resolution
Lens
IR Effective Distance
Weather-/Vandal-proof
Download
DG103A
1080Pf3.6mm / F1.8; f2.8mm / F1.8 (Optional) Up to 20 meters
v
DG105A
1080Pf3.6mm / F1.8 Up to 15 meters IP66
v

Recorders
Model No.
Product

Recording
Throughput

HD
Storage

Channel
eSata
Recording Format
Video Output
Download

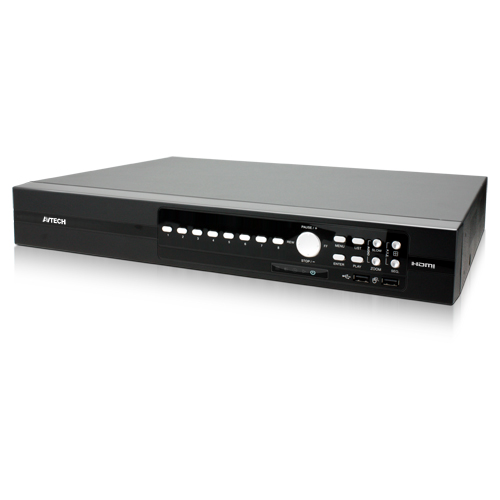

DG1008
2 HDDs8CH

1080P / 720P / QHD / FRAME / FIELD / CIF BNC / VGA / HDMI
v

Peripherals
Model No.
Product image
Product name
Product specification
Download
AVX916
HD Video ExtenderThis converter is used to extend the full HD transmission distance up to 100 meters with a RG-6 coaxial cable. Also, the control signals from the USB mouse / keyboard, and IR remote control are able to be transferred. Users may install the NVR in the machine room and set the monitor in the security center locally. They do not need to have another computer in the security center for remote NVR access.
v
HDM02
Full HD MatrixThis full HD matrix is able to combine up to 4 HDMI signals to a single HDMI display with control. To have one more display with control, an optional lHD video extender, AVX916R, could be used.
v
