Success Story

Here are the success stories and cases with AVTECH total solutions.

Vietnam Times City



 Description

Times City is a project comprising luxury apartments, business centers, parks and schools in Honoi, Vietnam. Since this project covers a large area with different public and private facilities, the existence of a reliable surveillance system is highly important, and AVTECH has the honor to be chosen to guard the whole city.

AVTECH products are mainly installed in the parking lots and on lower levels of the shopping malls. The security center is able to monitor both IP and CCTV systems in one monitor with AVTECH HDMI matrix, HDM02, and the CMS “TRIDENT”.

On the lower levels, AVM311 is used as the eye to monitor each area. Its IK08 approval prevents damages from outside force. The installation is easy and quick because AVX913R6, the PoN converter, is used during installation to offer camera power via network cables only. It’s not necessary to connect a power cable for each camera. To record what AVM311 sees, AVH516A, a 16CH NVR, is used to save those high quality footages up to 1080P full HD. In addition, this NVR also supports event notifications via Push Status, Video Mail and Message Mail, allowing the mall managers to be aware of each corner’s status in the mall.

In the parking lots, AVM183, an IR dome camera, is used as an eye for 24/7 monitoring with 960H clear image quality, even when the environment gets dark. To record what AVC183 sees, AVC708H, a 16CH 960H DVR, is used to save those high quality footages up to 960H.

In the whole surveillance system, three sites are built respectively in the machine room, control center and parking lot center to centrally monitor each location. The site in the machine room is built with HDM02, the HDMI matrix, for the security guard to know if there’s any video loss occurrence and fix immediately. The other two sites in the control center and parking lot center are built with the CMS “TRIDENT” to centrally monitor and control each location. E-Map, Event Management and Health Check on CMS “TRIDENT” make the management even easier and simpler.

In this case, you can see both IP and CCTV systems are coexisted and integrated well with HDM02 and the CMS “TRIDENT”. If further system upgrade is needed in the future, the compatibility issue is not the thing to worry about.

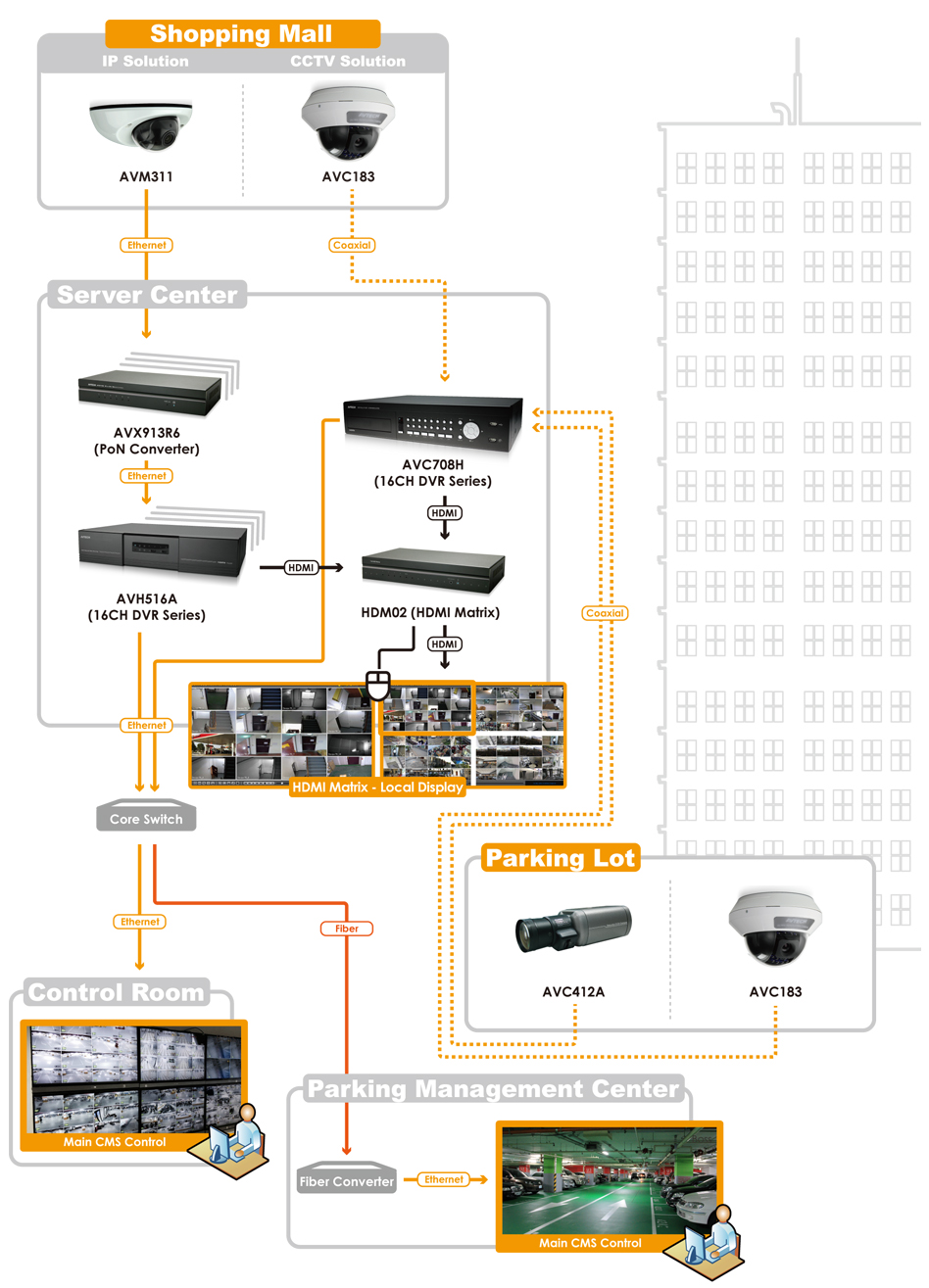

System diagram






C.M.S. "TRIDENT"
AVTECH CMS software, “TRIDENT”, is a powerful system designed for all-scale projects. Global monitoring and control become so easy and efficient with its e-Map configuration and instant event pop-up display.

For details, please go to:
http://211.75.84.102/e_news/CMS_eNews/CMS_v2.html



Related Products

Cameras
Model No.
Product image
Resolution
Lens
IR Effective Distance
Weather-/Vandal-proof
Download
AVC183
700 TVLf3.8mm / F1.5 Up to 10 meters
v

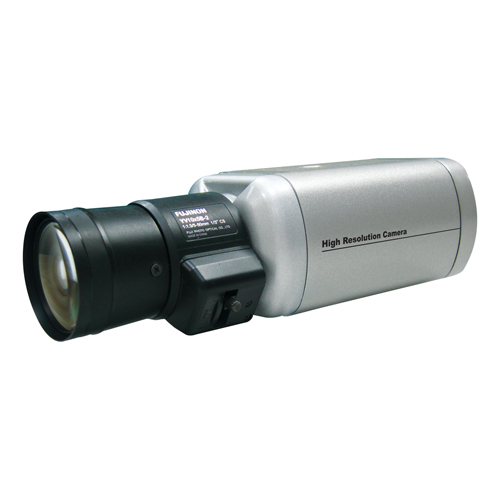

AVC412A
Super high resolution--
v
AVM311
1280x1024
1280x720
640x480
320x240
f3.8mm / F1.5; f2.8mm / F1.8 (Optional) IK08
v

Recorders
Model No.
Product

Recording
Throughput

HD
Storage

Channel
eSata
Recording Format
Video Output
Download
AVC708H
2 HDDs16CH

960H / Frame / Field / CIF BNC / VGA / HDMI
v
AVH516A
Up to 480 IPS @ 1920x1080, Up to 120Mbps Three 4TB hard disks16CH

v

Peripherals
Model No.
Product image
Product name
Product specification
Download

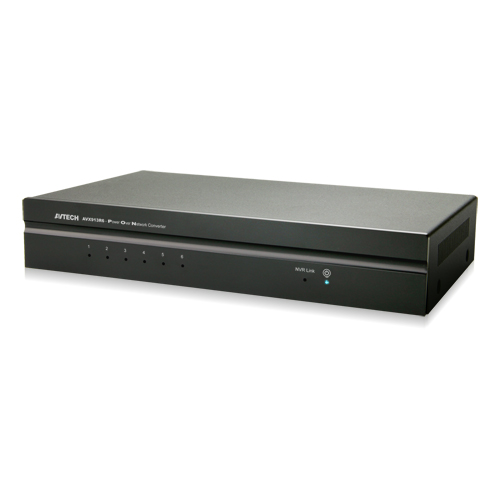

AVX913R6
PoN ConverterThis PoN (power-over-network) converter supports 48V DC power supply to IP cameras through network cables, and the distance between an IP camera and this device could reach up to 100 meters.
v
HDM02
Full HD MatrixThis full HD matrix is able to combine up to 4 HDMI signals to a single HDMI display with control. To have one more display with control, an optional lHD video extender, AVX916R, could be used.
v
