Success Story

Here are the success stories and cases with AVTECH total solutions.

Czech Shopping Mall



 Description

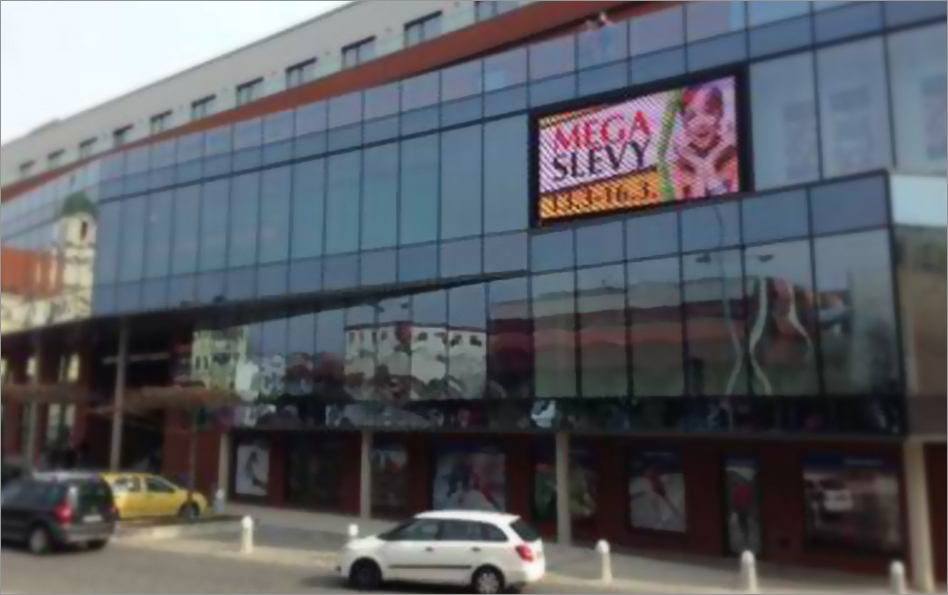

This is a well-known shopping mall with 7 branches in different cities in Czech Republic. The areas needed to be monitored are including shopping zone, surrounding mall, elevators and underground parking garage. Parts of the main entrances are requested to be equipped with the best cameras with sharp image, and the cameras with high cost performance are acceptable for the others. Furthermore, the customer emphasized the elegant design and small size cameras for inside the elevators, and the cameras with high quality image for recognizing the license plate clearly at the entrance of the underground parking garage.

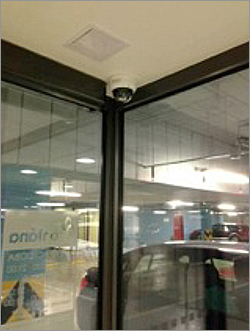

We separated the installation area into four sections and installed total 137 cameras. For inside the elevators, AVM311, 1.3MP mini Dome with vandal resistant IK-08, is the best choice according to the customer’s need because it is a small and elegant camera suitable for going with the elevator decoration.For the underground parking garage, we installed the camera AVM542. This 2MP outdoor vandal-proof dome can help to monitor in wide range with the 3-axis mechanism and prevent your camera from tampering or deliberate damages with tamper-resistant case.To recognize the license plate clearly, the equipped super WDR and f2.8~12mm Lens can keep image recognizability even near the headlight or against the light. With IR solid light, AVM542 is also suitable for dark surveillance environment such as this parking garage and is allowed to automatically control the amount of light to avoid over-exposure. For the surrounding mall, we used AVM552, which is 2MP outdoor IR bullet IP camera, to monitor the surrounding with f2.8~12mm Lens, super WDR and IR solid light. For the shopping zone, AVM428 and AVM328, which is 2 MP and 1.3MP indoor Dome camera, are installed. They both have built-in PIR paired with human detection to accurately detect the intruder, and also avoid image noise at night and false alarm because of shifting light.

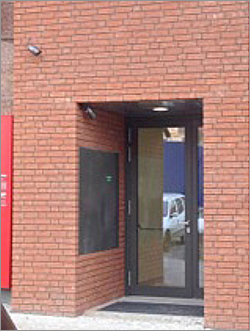

AVM552 with Solid Light IR at Entrance for night visionAVM542 with super WDR at parking lot entrance for car plate monitoring







Solid Light
- Advanced Smart Light Control -
When an object is close to the camera during night time, Solid Light will sense it and automatically control the amount of light to avoid over-exposure.

Longer IR Effective Distancel
Solid Light is able to produce stronger lighting under IR Enhance mode than traditional IR LEDs. It enhances the overall picture brightness and reaches longer distance in a dark environment.

- Longer LED Lifetime -
Solid Light applies special circuit design to avoid overheat and uses a heat sink to dissipate heat from LED more quickly. LED lifetime can last for 3 years with Solid Light design.


Related Products

Cameras
Model No.
Product image
Resolution
Lens
IR Effective Distance
Weather-/Vandal-proof
Download
AVM311
1280x1024
1280x720
640x480
320x240
f3.8mm / F1.5; f2.8mm / F1.8 (Optional) IK08
v
AVM428D
1920x1080
1280x720
640x480
320x240
f3.8mm / F1.5 Up to 10 meters
v
AVM542B
1920x1080
1280x720
720x480
352x240
f2.8 ~ 12mm / F1.4 ~ F2.8 Default: up to 30 meters
IR Enhanced Mode: up to 50 meters
IP66 / IK10
v
AVM552C
1920x1080
1280x720
720x480
352x240
f2.8 ~ 12mm / F1.4 ~ F2.8 Default : up to 25 meters
IR Enhanced Mode : up to 35 meters
IP66
v





Conclusion

We are satisfied with the image quality, especially the license plate recognizability at the entrance of the parking garage of AVM542. Also, the cost-effective system consisted of 1.3MP, 2MP and 2MP WDR cameras really saved lots of money for us for upgrading to IP surveillance system. We plan to keep this IP solution using in our following upgrading of surveillance system of the other 6 branches. And the remodeled Hotel in the loft of the shopping mall is going to install 20 cameras as well.
