Success Story

Here are the success stories and cases with AVTECH total solutions.

Lebanon Hospital



 Description

This is a famous heart hospital in Lebanon just opened up and needed to be installed complete surveillance system. The hospital was looking for a stable, continuous, smooth IP-based video solution providing high image quality and keeping the recording for 30 days. Furthermore, the guards in the control center needed to view the live video and to be notified in case there was any health emergency, handling the situation as soon as possible.We installed two high cost-effective cameras with 2MP resolution, that is, outdoor IR bullet AVM457 and indoor IR dome AVM428. AVM428 is equipped with digital alarm input for connecting outdoor sensor, such as active IR sensor. If events are triggered via sensor, event notification will be popped up on the CMS monitor. And the builtin PIR sensor of this camera is capable of detecting people accessing the emergency exit for triggering events to do event pop-up on CMS. In the hospital ward, AVM428 is able to connect emergency button to digital alarm input for notifying nursing aides immediately with CMS event pop up to broadcast if emergency occurs. In the control center, HDM02, 4 in 1 HDMI Video Matrix, is used to combine the HDMI signals and mouse control of four NVRs AVH516, into 42 inches monitor for live view and controlling. With CMS system on PC, the event pop-up and health check can help to be notified instantly and check the status of all devices.

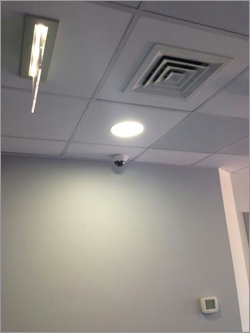

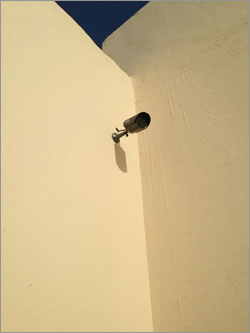

Outdoor fence with AVM457 and connected with Active IR SensorAVM428 connected with Panic Button

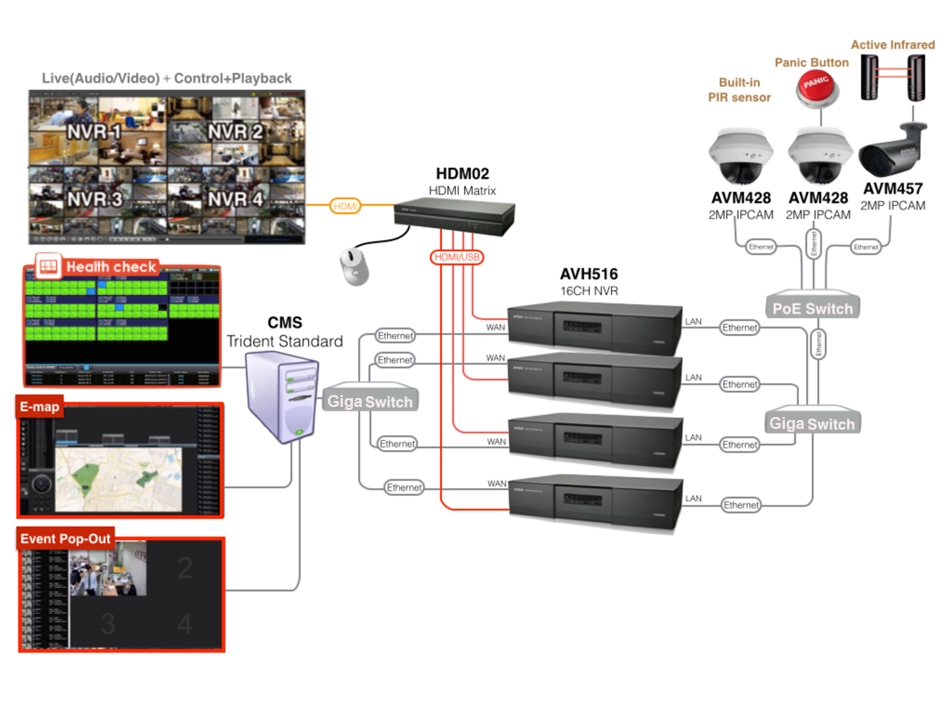

System diagram






C.M.S. "TRIDENT"
AVTECH CMS software, “TRIDENT”, is a powerful system designed for all-scale projects. Global monitoring and control become so easy and efficient with its e-Map configuration and instant event pop-up display.

For details, please go to:
http://211.75.84.102/e_news/CMS_eNews/CMS_v2.html



Related Products

Cameras
Model No.
Product image
Resolution
Lens
IR Effective Distance
Weather-/Vandal-proof
Download
AVM311
1280x1024
1280x720
640x480
320x240
f3.8mm / F1.5; f2.8mm / F1.8 (Optional) IK08
v
AVM428D
1920x1080
1280x720
640x480
320x240
f3.8mm / F1.5 Up to 10 meters
v
AVM457A
1920x1080
1280x720
640x480
320x240
f3.8mm / F1.5 Up to 20 meters IP67
v

Recorders
Model No.
Product

Recording
Throughput

HD
Storage

Channel
eSata
Recording Format
Video Output
Download
AVH516A
Up to 480 IPS @ 1920x1080, Up to 120Mbps Three 4TB hard disks16CH

v




Conclusion

The built-in PIR of AVM428 and alarm digital input of AVM457 help to provide us with various alarm devices and emergency sensors to build a complete security system, reducing the cost of human resource and management. Especially the combining live view of HDM02 in the control center eliminated lots of problems and inconveniences, making high efficiency at work and decreasing the maintenance cost.
