Success Story

Here are the success stories and cases with AVTECH total solutions.

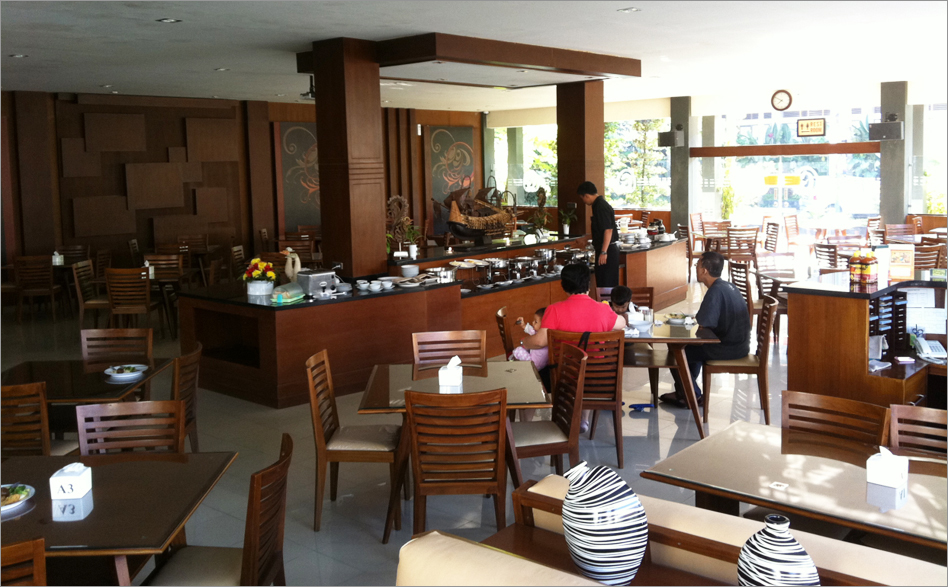

Dubai Chain Restaurant



 Description

This modern chain restaurant extended about 60 branches all over Dubai. They needed a total surveillance solution to guard their stores. The monitored areas needed to be focused of those independent running branches were about 4 to 8, such as cashier counter, entrances of the restaurant and dining table. Additionally, they hoped to install surveillance sensor to avoid intruder after closing.

Based on the tasks, we installed AVH408P as 8CH recorder and 2MP IR dome AVM428 to meet the needs of those restaurants. AVH408P is equipped with built-in 8 PoE Ethernet ports, providing power to the IP cameras through Ethernet cable, reducing the cost of POE switch and solving the problems might happened during POE switch running or installed. With Push Video, the store manager and district manager can configure the push video schedule on the APP EagleEyes via iOS or Android mobile devices to define the period you want it to be warned. The alarm devices were including the built-in PIR human detection, the reeds switch and glass break sensor detector connected to digital alarm-in interface of AVM428. If events are triggered in the defined period, the store manager and district manager will be simultaneously notified within 5 seconds. AVTECH provided a cost-effective solution to accomplish a mission notifying in shortest time and providing a versatile and complete system as a professional security service.

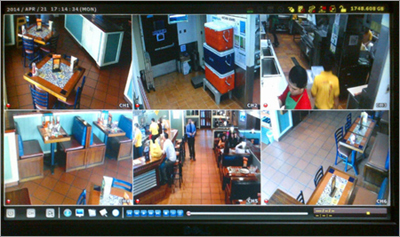

AVM428 detects intruder with built-in PIR or door sensor connectedBuilt-in HDMI display from AVH408P standalone NVR with full control function, no PC and other CMS software.

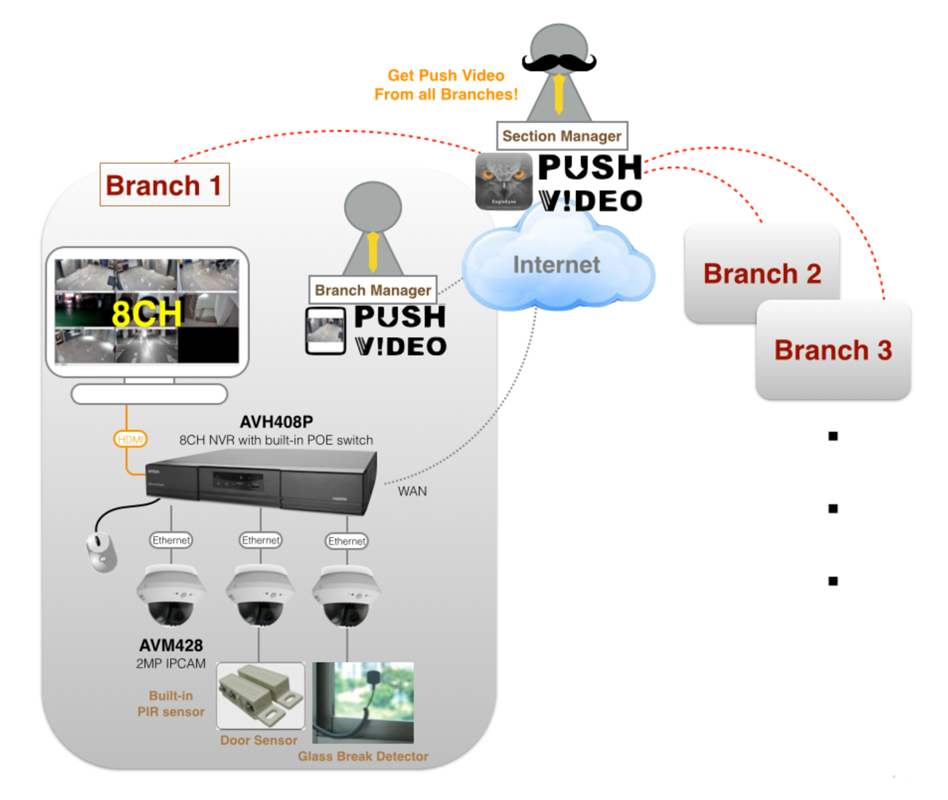

System diagram






Push Video
Push Video series features powerful mobile surveillance, especially active event notification systems with video playback on iPhone, iPad, Galaxy and other Android devices. Once our free mobile app, EagleEyes, is installed, you'll be able to receive notifications within 5 seconds right after the event occurrence, and to see what happened. Push Video series keeps an eye on the your properties and never gets asleep.



Related Products

Cameras
Model No.
Product image
Resolution
Lens
IR Effective Distance
Weather-/Vandal-proof
Download
AVM428D
1920x1080
1280x720
640x480
320x240
f3.8mm / F1.5 Up to 10 meters
v

Recorders
Model No.
Product

Recording
Throughput

HD
Storage

Channel
eSata
Recording Format
Video Output
Download
AVH408P
Up to 120 IPS @ </br>2048 x 1536, 48 Mbps</br>Up to 120 IPS @ 1920x1080, 48Mbps 2 HDDs8CH

v




Conclusion

The NVR with built-in PoE and cameras with PIR human detection greatly decreased the building budget and really completed the surveillance system. The store manager and the district manager were satisfied with the APP EagleEyes paired with Push Video controlling the store security effectively and covering for the high cost of security manpower per month. Because of the confidence in AVTECH, the about 60 branches gradually upgraded the surveillance system with such 2MP integration solution.
